TRACKSTAR E

The Trackstar E, which features 128 kB of RAM and a 65C02 processor, is essentially a clone of the enhanced Apple IIe. It does not support MouseText by default, requiring an updated EPROM to add compatibility. Conveniently, this model's operating software can be run from a hard drive instead of requiring the original floppy disk.

The biggest and most exciting improvement over the previous Trackstar models is, in my opinion, the introduction of “Trackstore” floppy disk images, and ProDOS virtual hard drives. That's right: the Trackstar E (and the Trackstar Plus) can copy physical floppy disks to image files stored on your PC, to quickly and easily use your favorite programs without needing their original disks handy! As well, ProDOS virtual hard drives may be created and used, up to 10 MB in size. It was an amazing innovation!

The Trackstar E can optionally connect to the PC's 5¼” 360 kB floppy drive in order to read and write Apple II floppy disks. However it is also capable of interfacing with an authentic Apple Disk II floppy drive. The latter method is highly recommended as the standard PC drives offer limited support for Apple II disks.

The E can output video in one of two ways: directly to your PC's CGA, EGA, or Tandy monitor, or via composite cable. For the former option, a custom cable “intercepts” your PC's video, which is then output by the Trackstar itself. The Apple II sound, meanwhile, is routed through your PC Speaker.

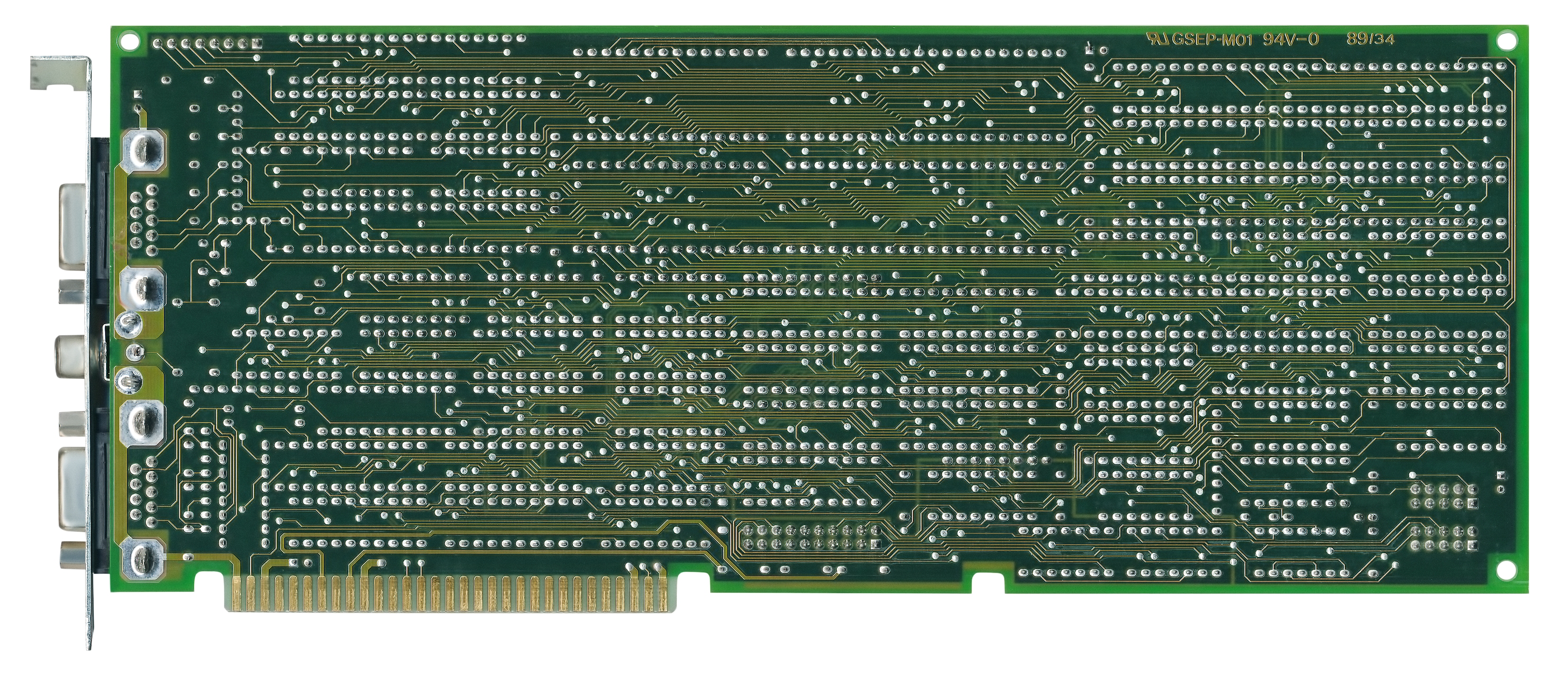

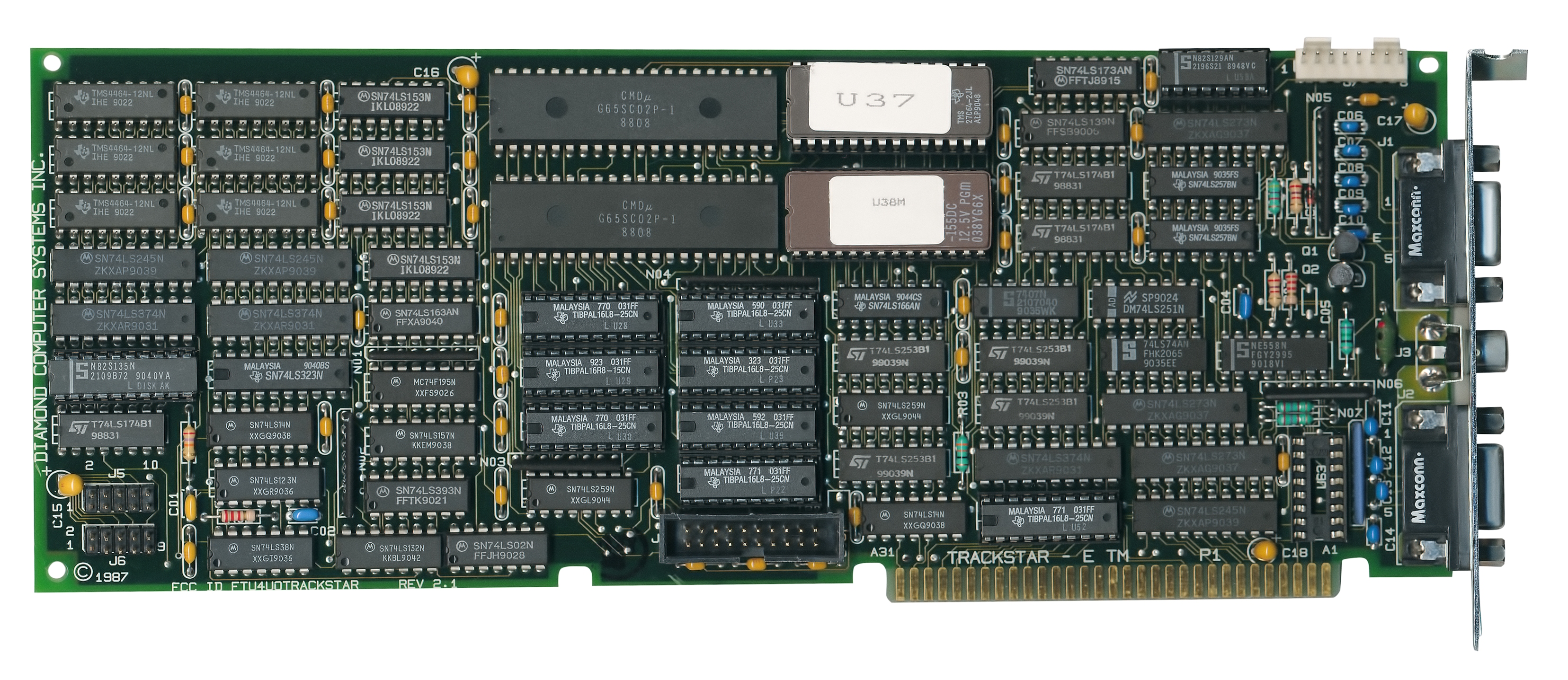

Trackstar E PCB photos (click to enlarge)
